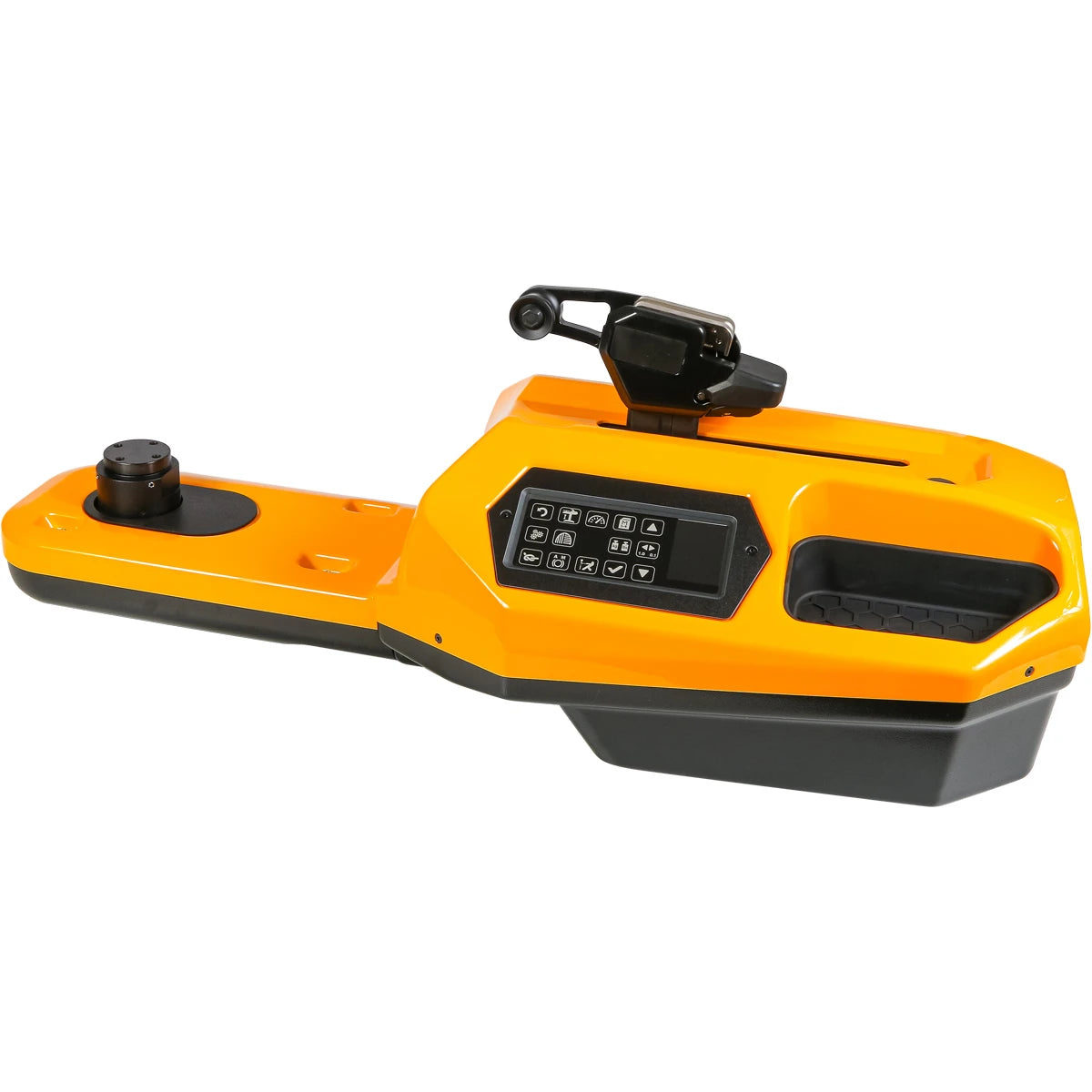

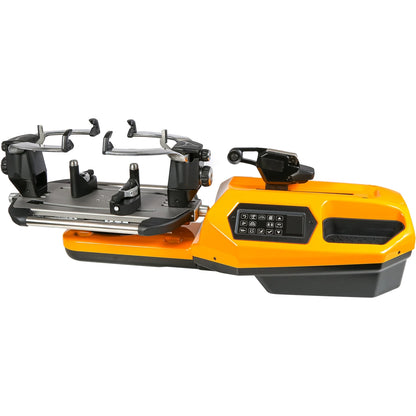

CB-26 Electronic Stringing Machine without Stand

Description

The CB-26 stringing machine is the most advanced model ever offered on our site. It is the improved version of the CB-20, and you will find many advantages in this model, which has established itself as a reference for regular and professional stringers.
A tray that is easy to lock, improved stability, clamps that unlock automatically, a large storage drawer, and pre-set tension modes: all these features help save time on stringing. The CB-26 also allows you to easily string badminton and squash rackets.

Warning: this machine is sold without a stand and is not designed to be used without one. Please choose (depending on available stock) a manual or electronic stand. These options are available in the stringing machine accessories or in the basket.

Delivered as a gift:

The machine comes with a complimentary set of strings and accessories worth €85.50 (this gift will be offered for addition in the basket).

SPECIFIC ADVANTAGES OF THE CB-26

1. Electronic tension system:
a) High precision thanks to:

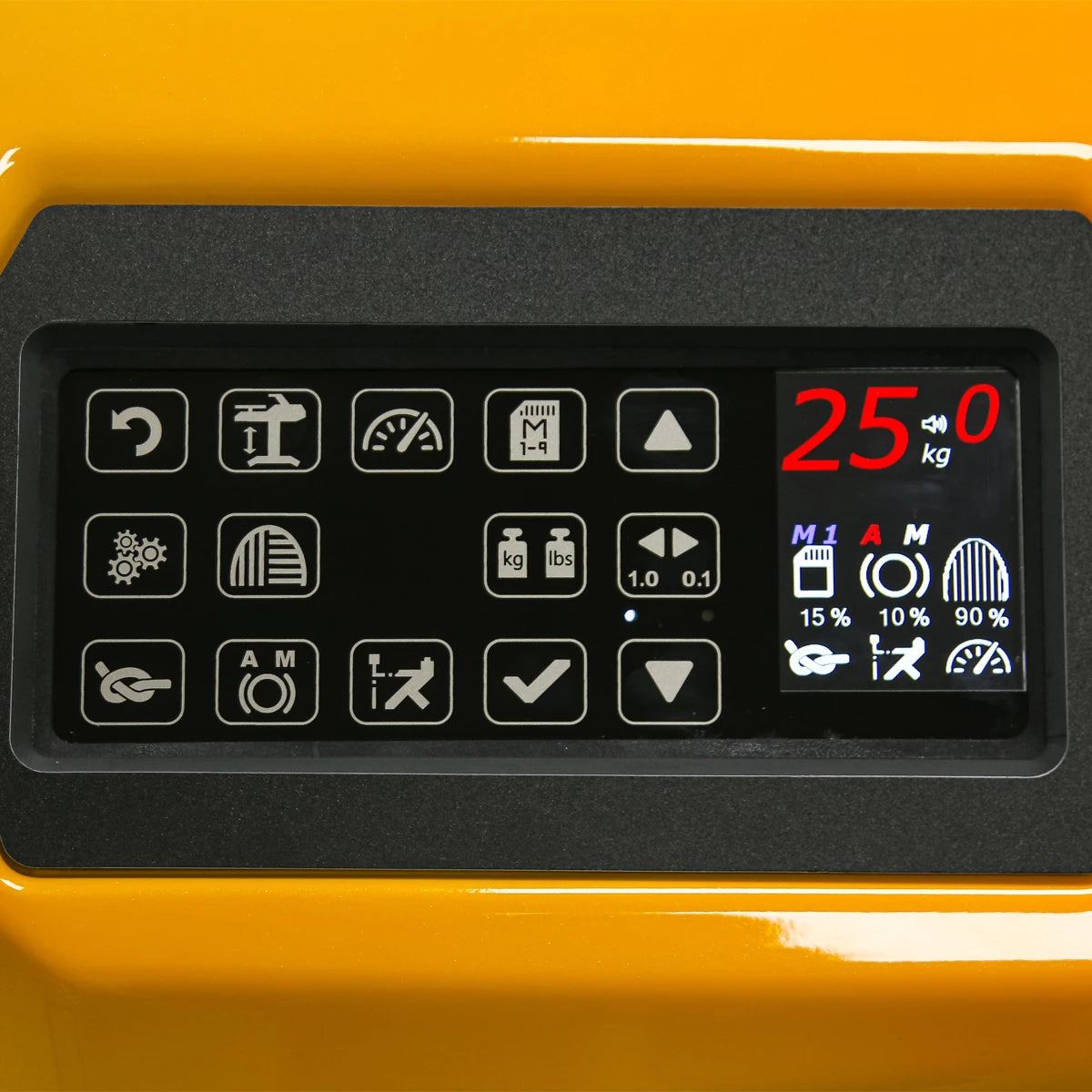

- the tension adjustment system with LED display allowing very precise tension settings (accurate to 100 grams).
- the “pre-stretch” option which removes as much elasticity as possible from the string for better tension maintenance
- more powerful and faster straight-line system
- powerful and fast motor
- adjustable tension from 5 to 40 kg
- the “knot” button which allows programming an over-tension between 0% and 30% at the knots to avoid any loss of tension during knotting

b) Time saving thanks to:
- the positioning of the tension head and its activation/deactivation button which are aligned and on the string’s trajectory during tensioning
- automatic return of the pull head to its initial position
- continuous motor traction, avoiding jerks at the end of the cycle when the desired tension is reached.
- the tension display switching from red to green on the dashboard when the tension is reached
- the possibility to memorise 9 presets and recall them with a single button press

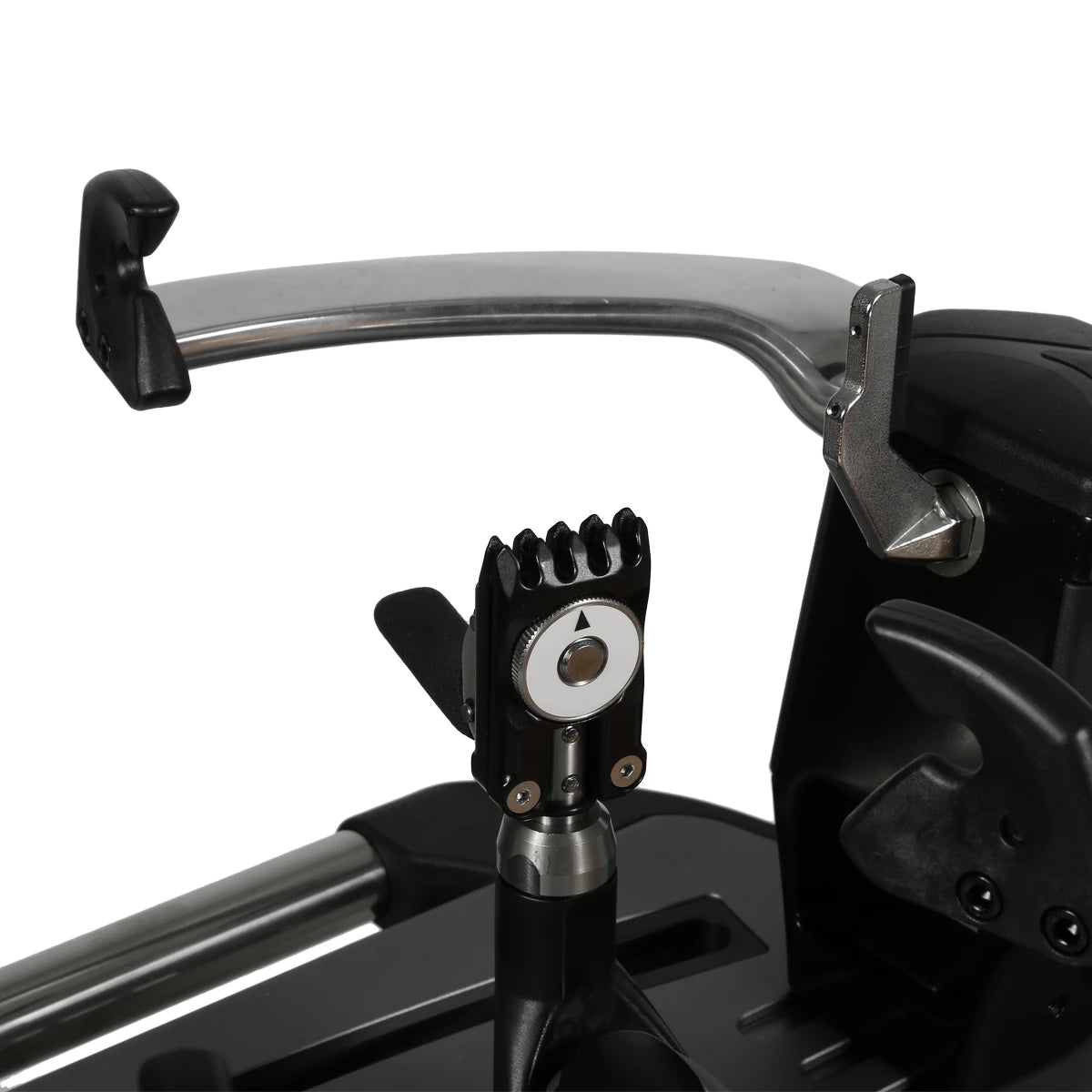

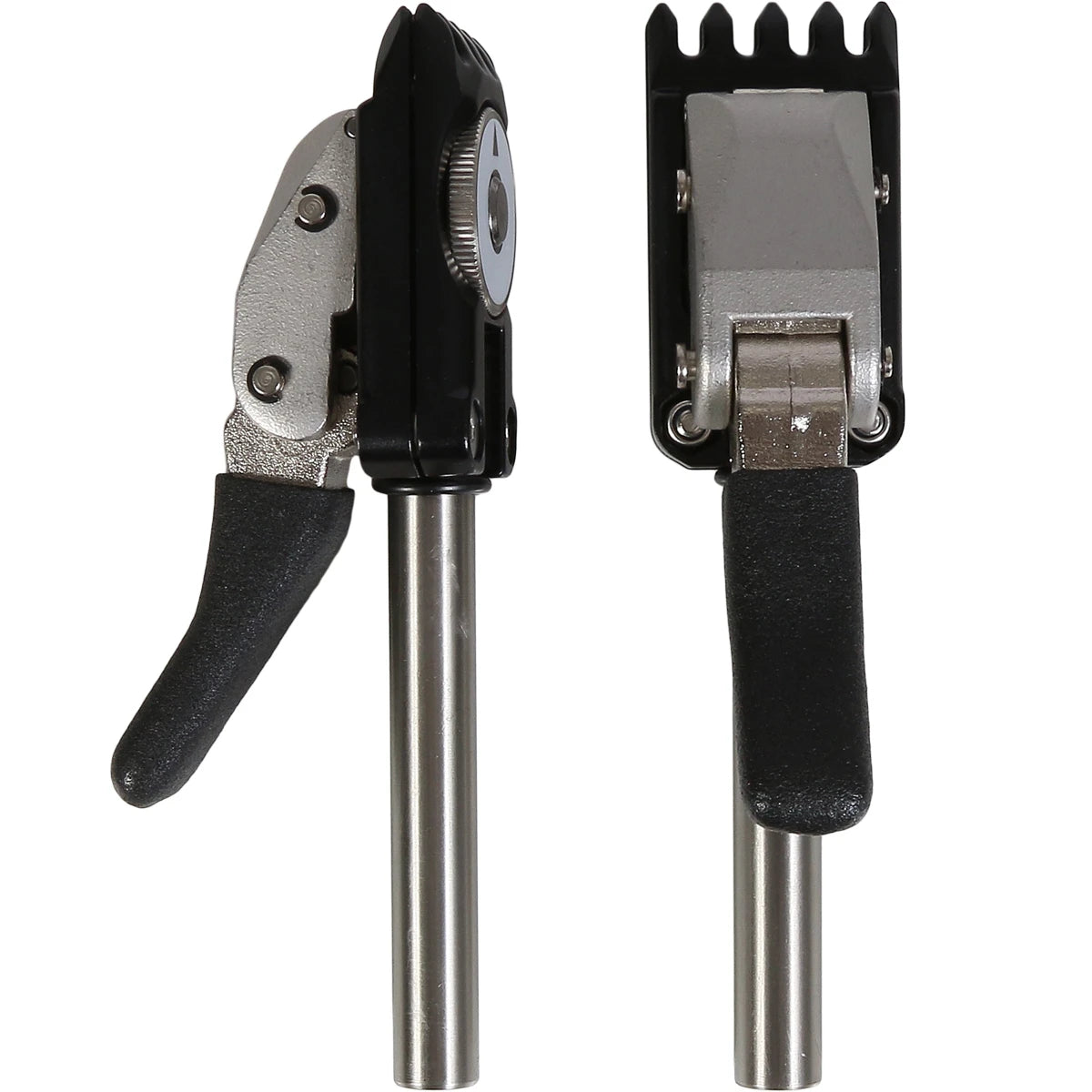

2. String clamping system: These 2 independent dual central clamps, each rotating 360°, serve to clamp both mains and crosses. They allow stringing mains in parallel, i.e. alternating one string on the right, then on the left, which is recommended for high-tension stringing, thus avoiding any risk of frame deformation. The clamps’ tightening at 2 points (vice axis and string) ensures great durability.
- quick clamp locking on the pivoting base: the lever locks with just a quarter turn for perfect clamping.
- tool-free adjustable pressure: a manually adjustable knob allows you to adjust the clamp pressure on the string according to its diameter.
- perfect clamp grip: diamond powder coating prevents any risk of string slippage.
- automatic base unlocking after removing the clamp to save time

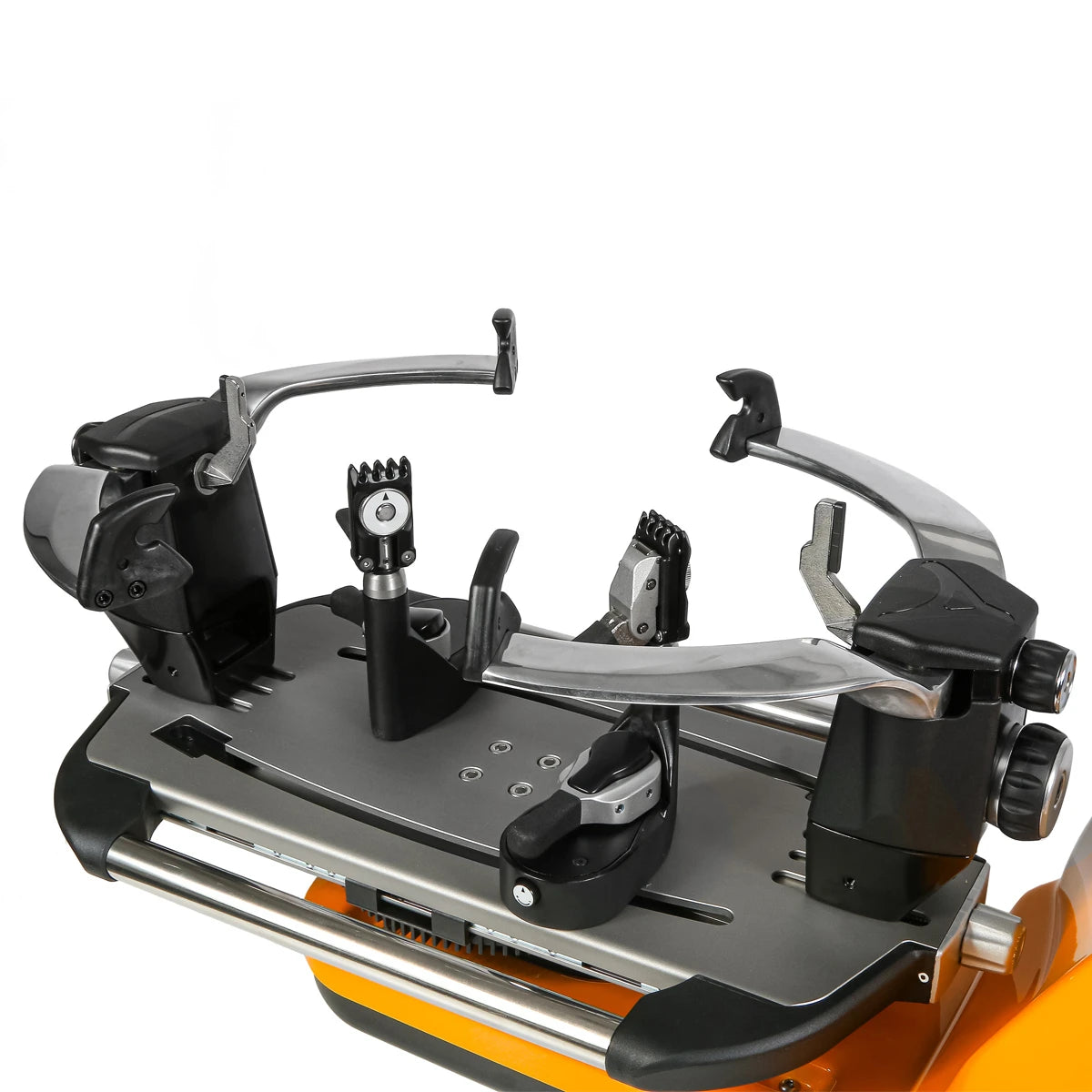

3. Frame holding and tooling:
- Mobile arm system allowing faster frame installation and ensuring excellent hold
- Adjustable cradle allowing stringing of all types of rackets (tennis, squash, badminton) while ensuring the best possible stability.

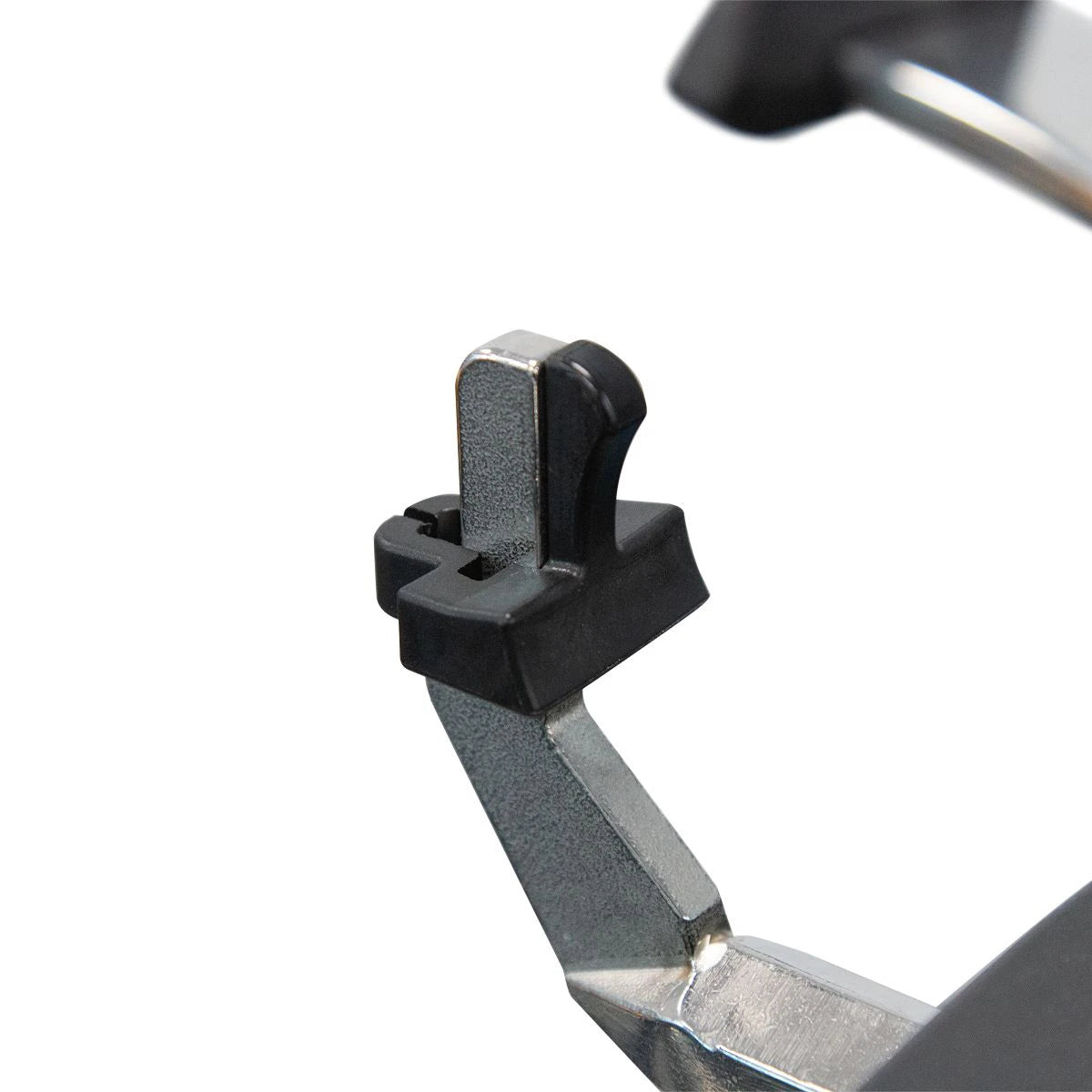

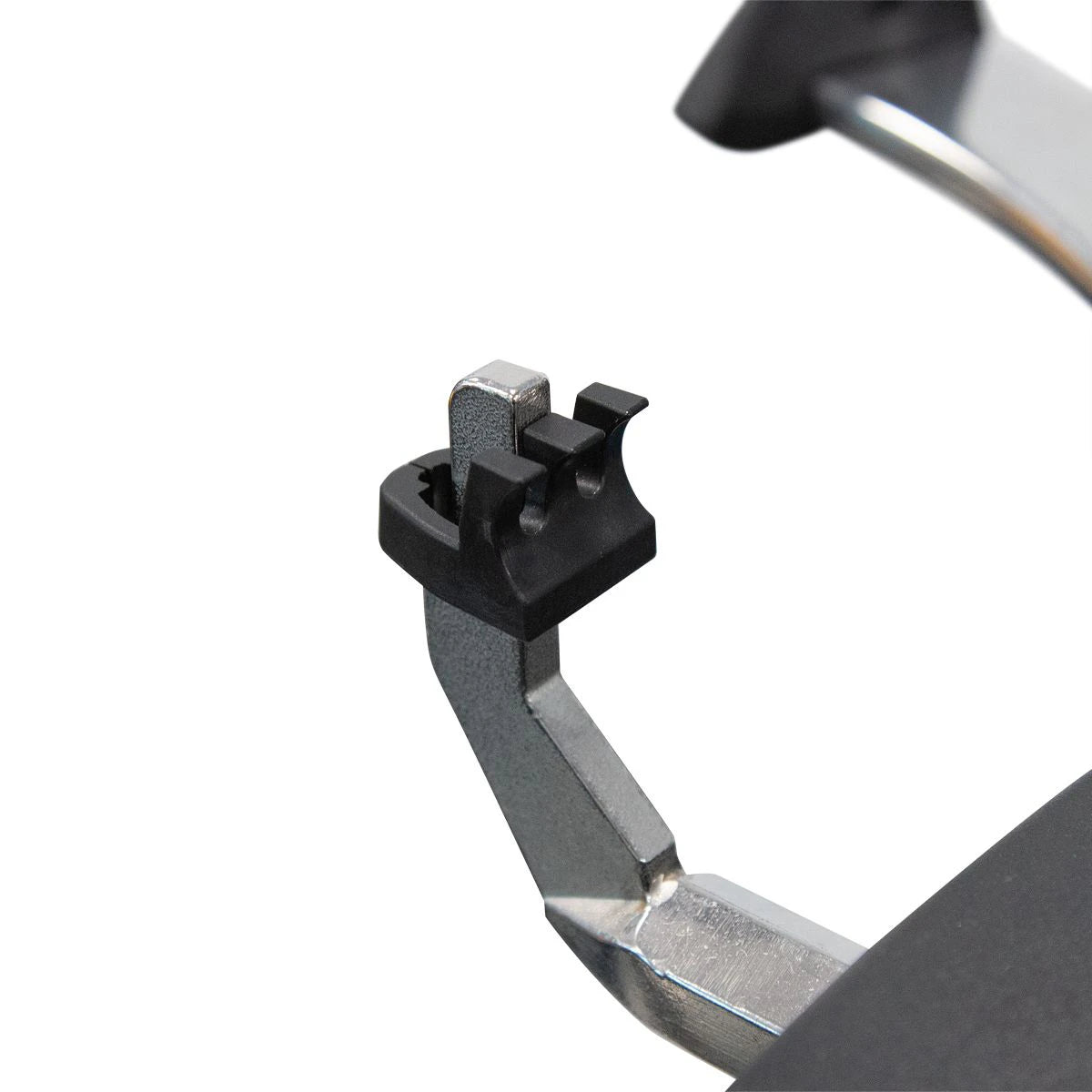

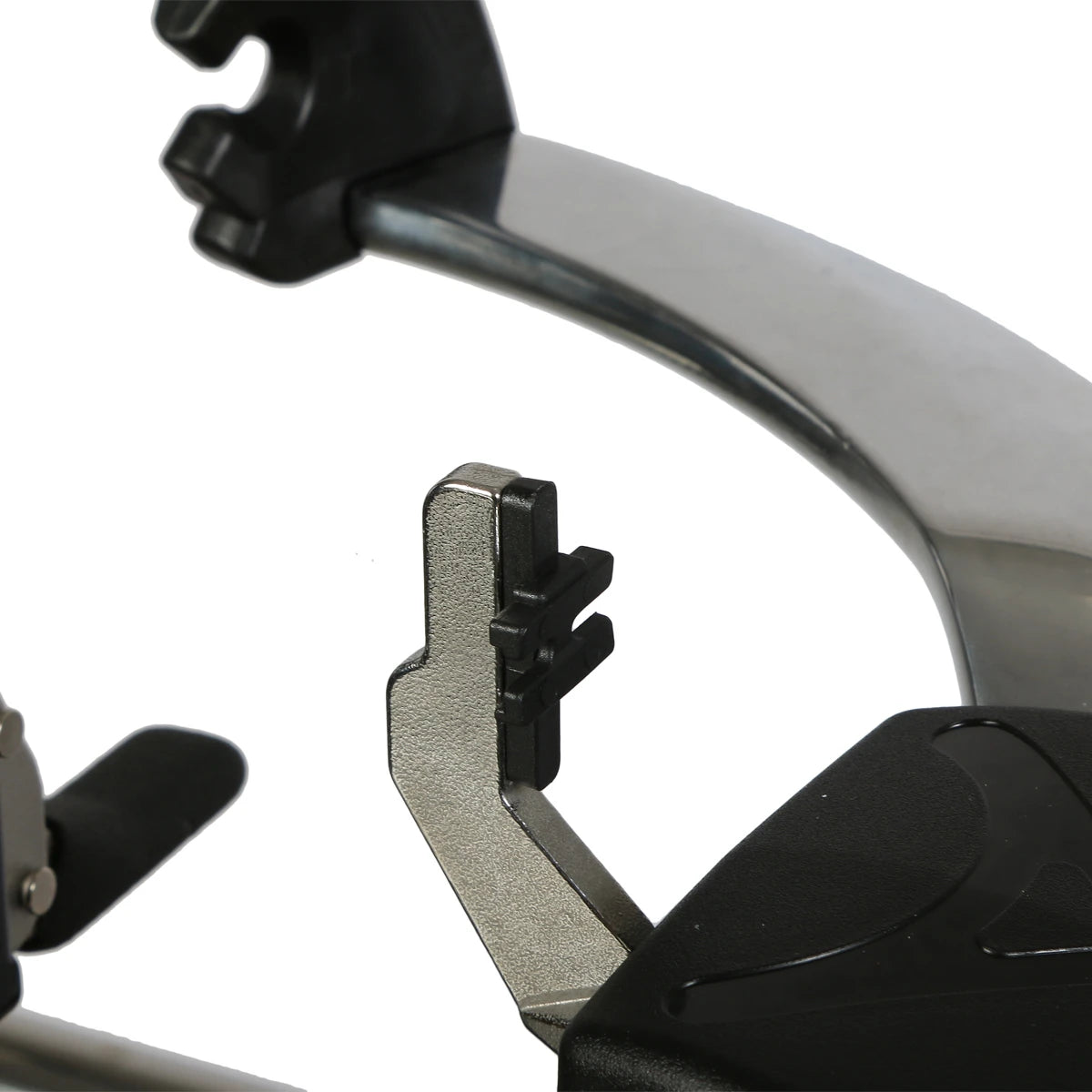

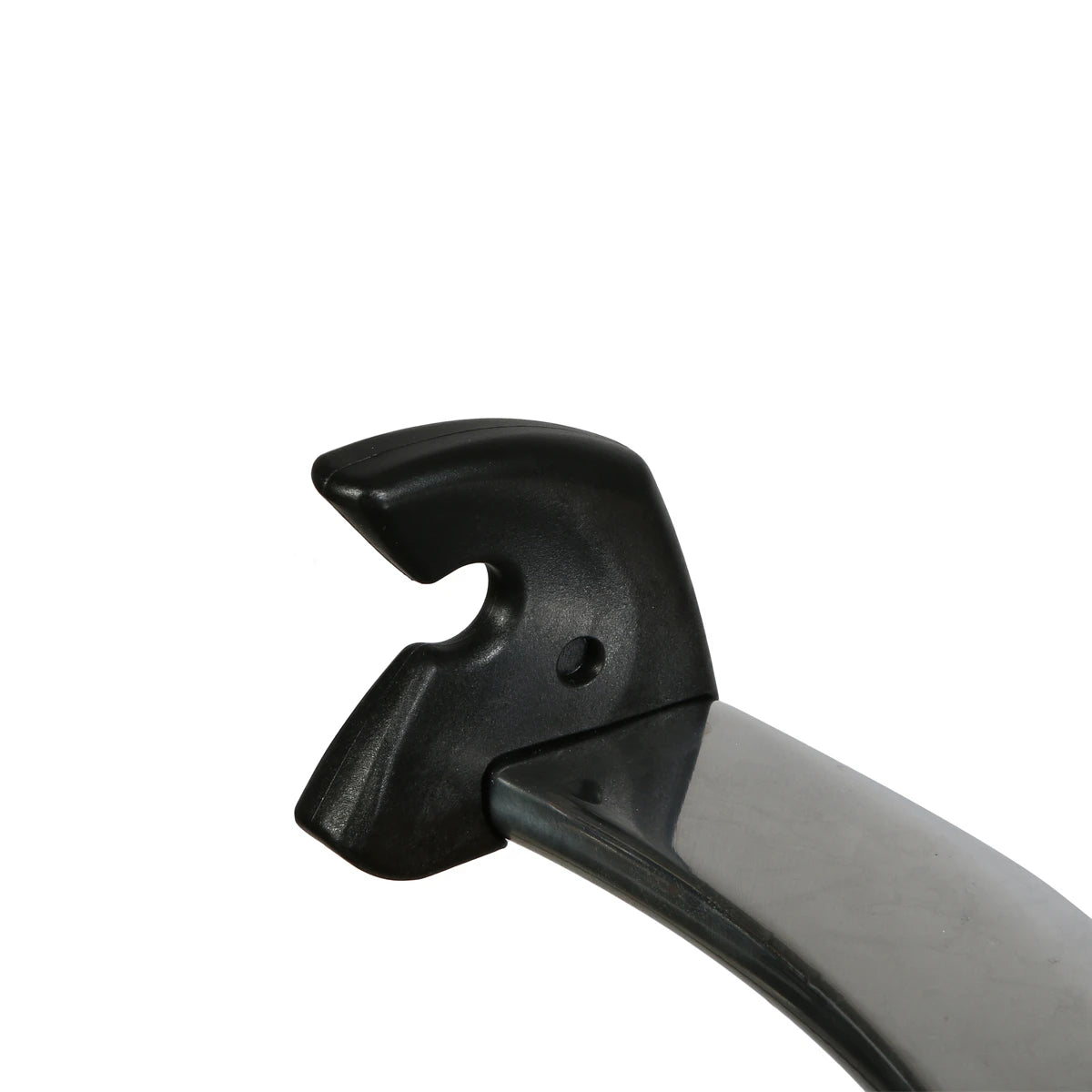

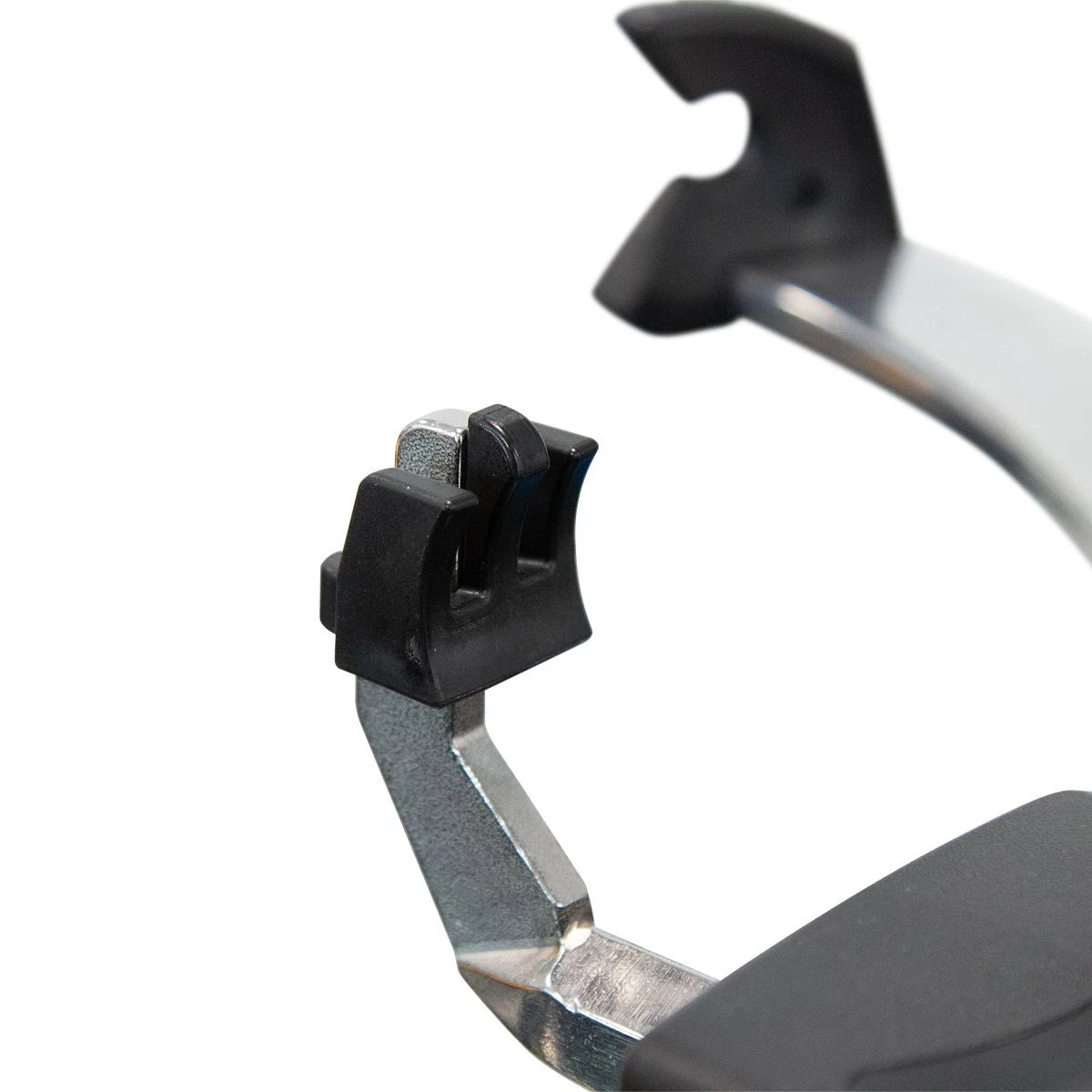

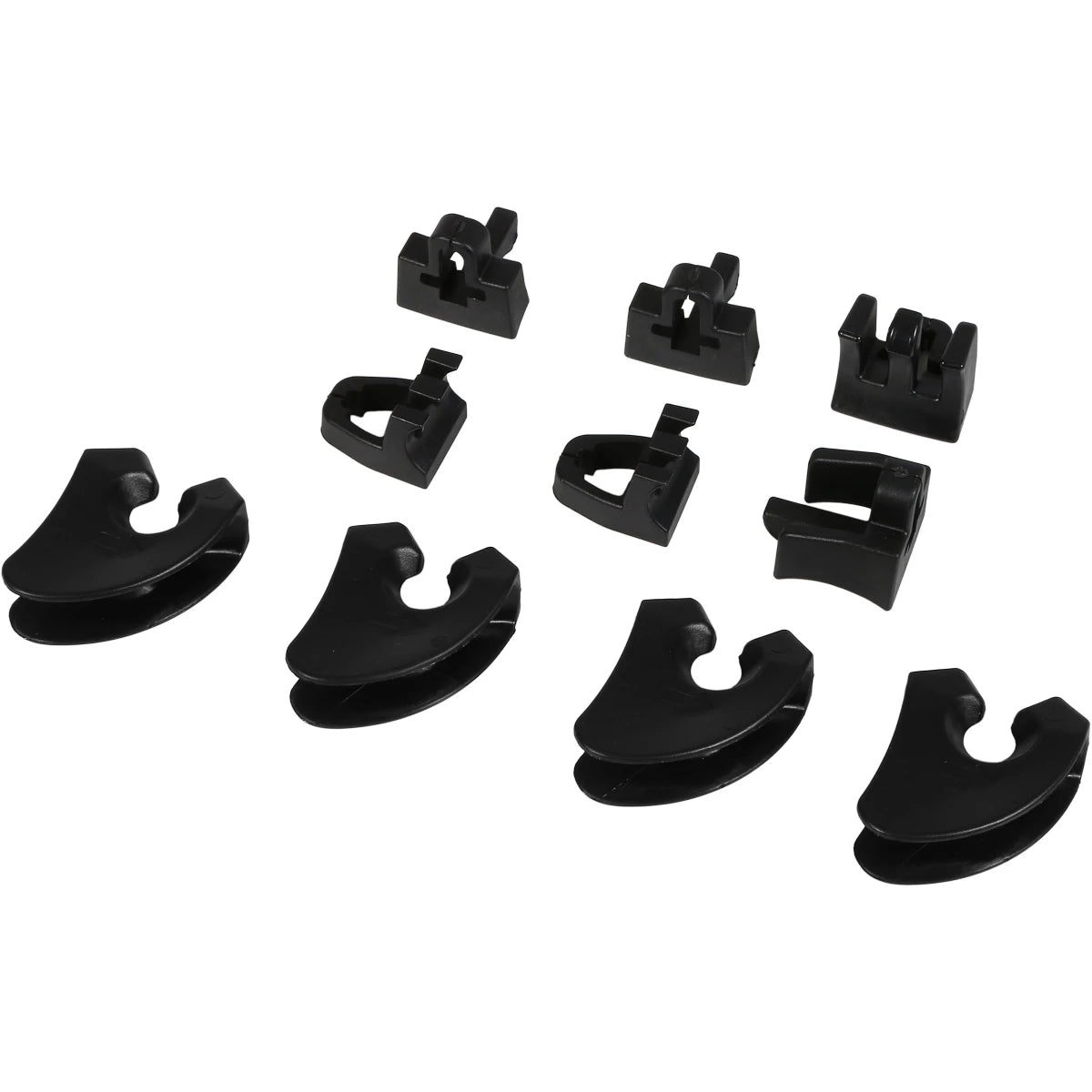

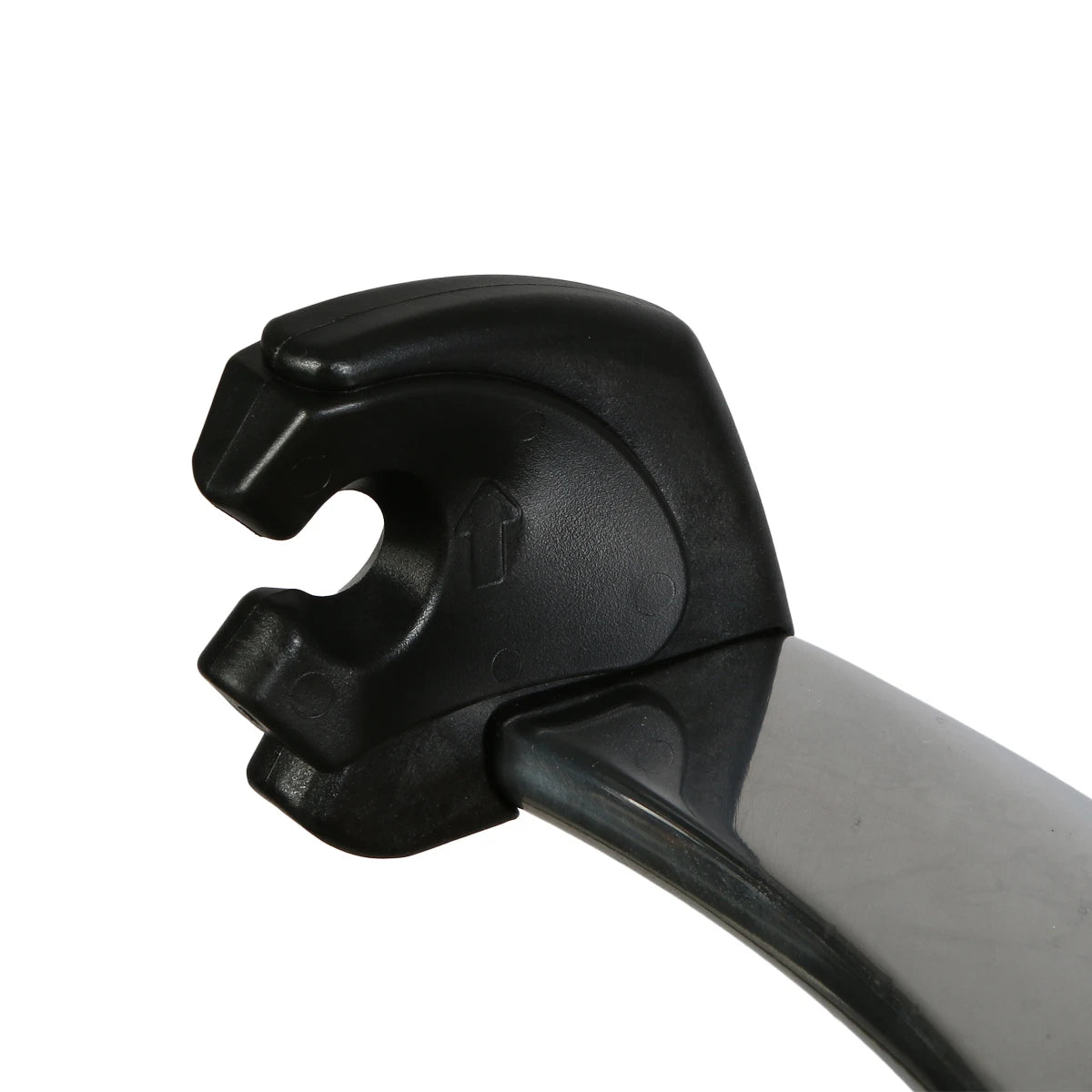

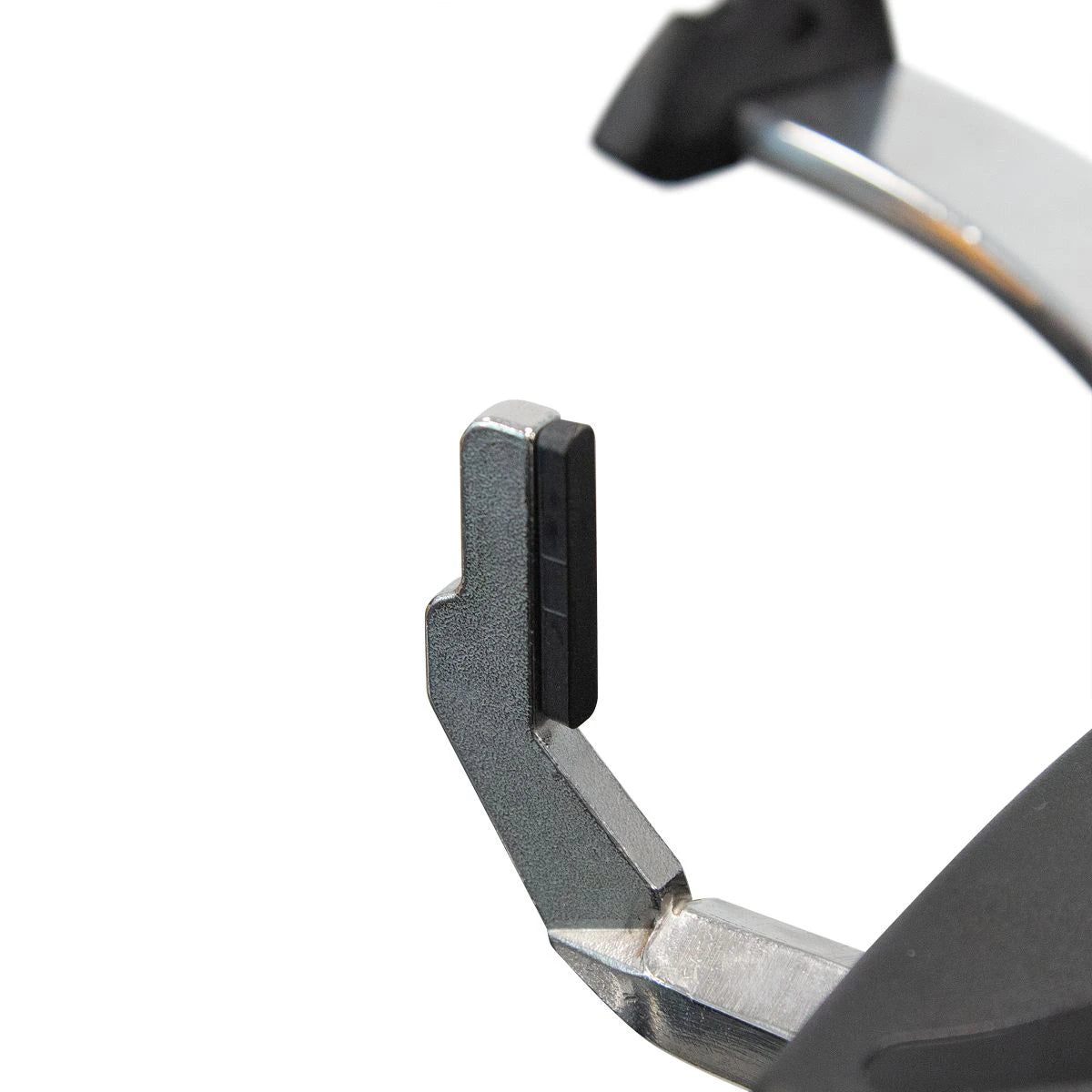

- 6 support points providing excellent hold for all types of frames.
- Precise frame adjustment thanks to 2 adjustment screws
- 2 screws are placed on each side of the tray to easily move the 2 arms holding the racket and thus perfectly adapt to the racket’s size.

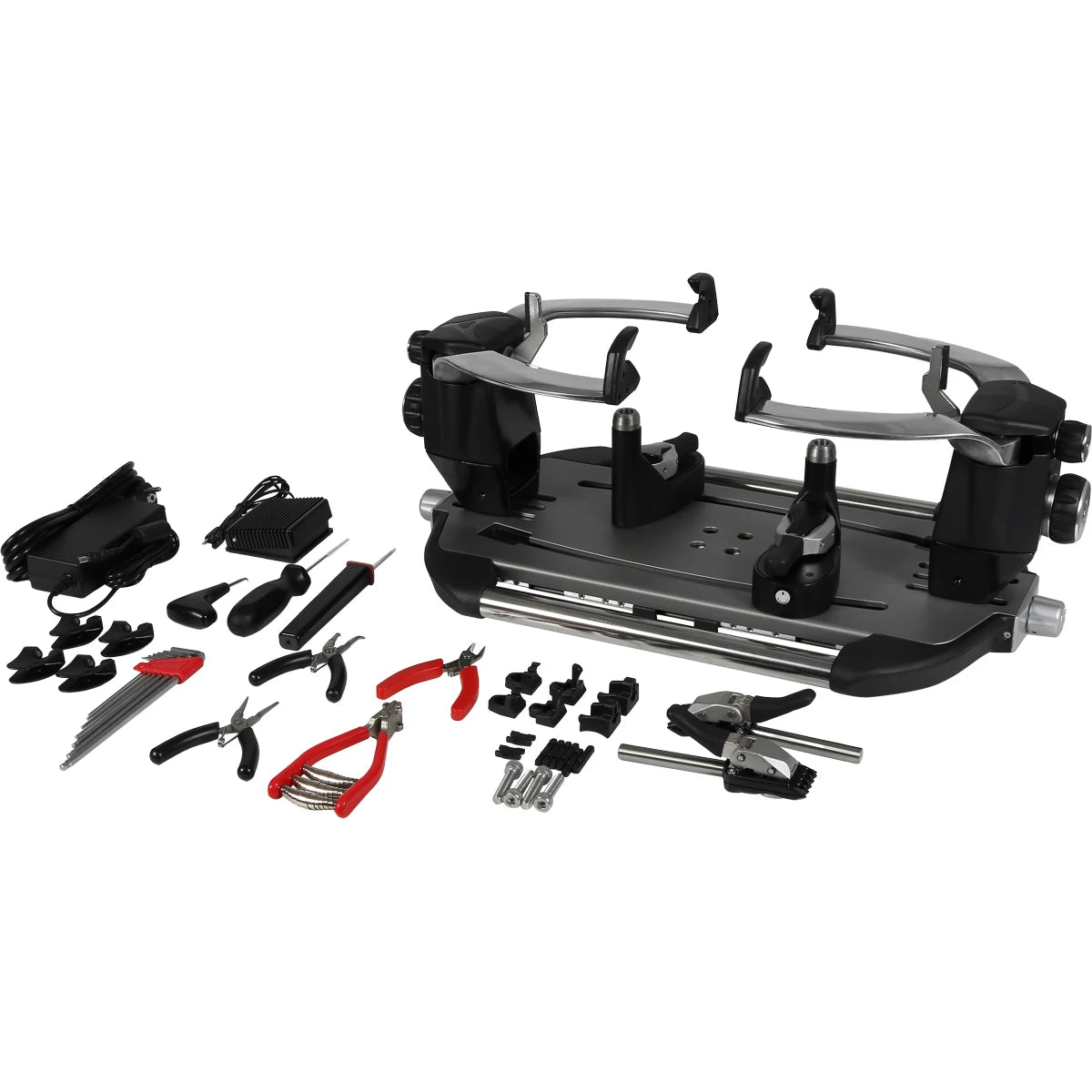

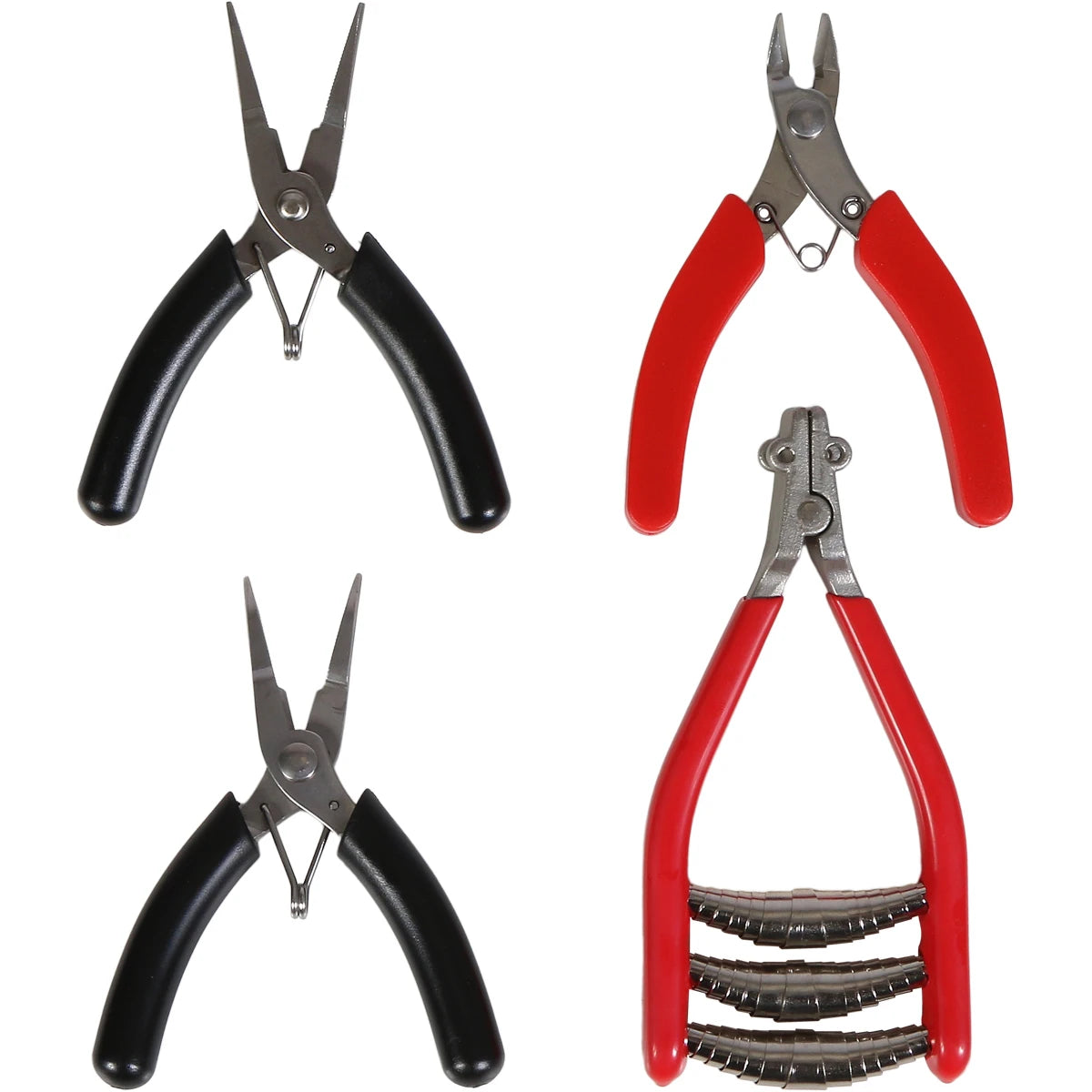

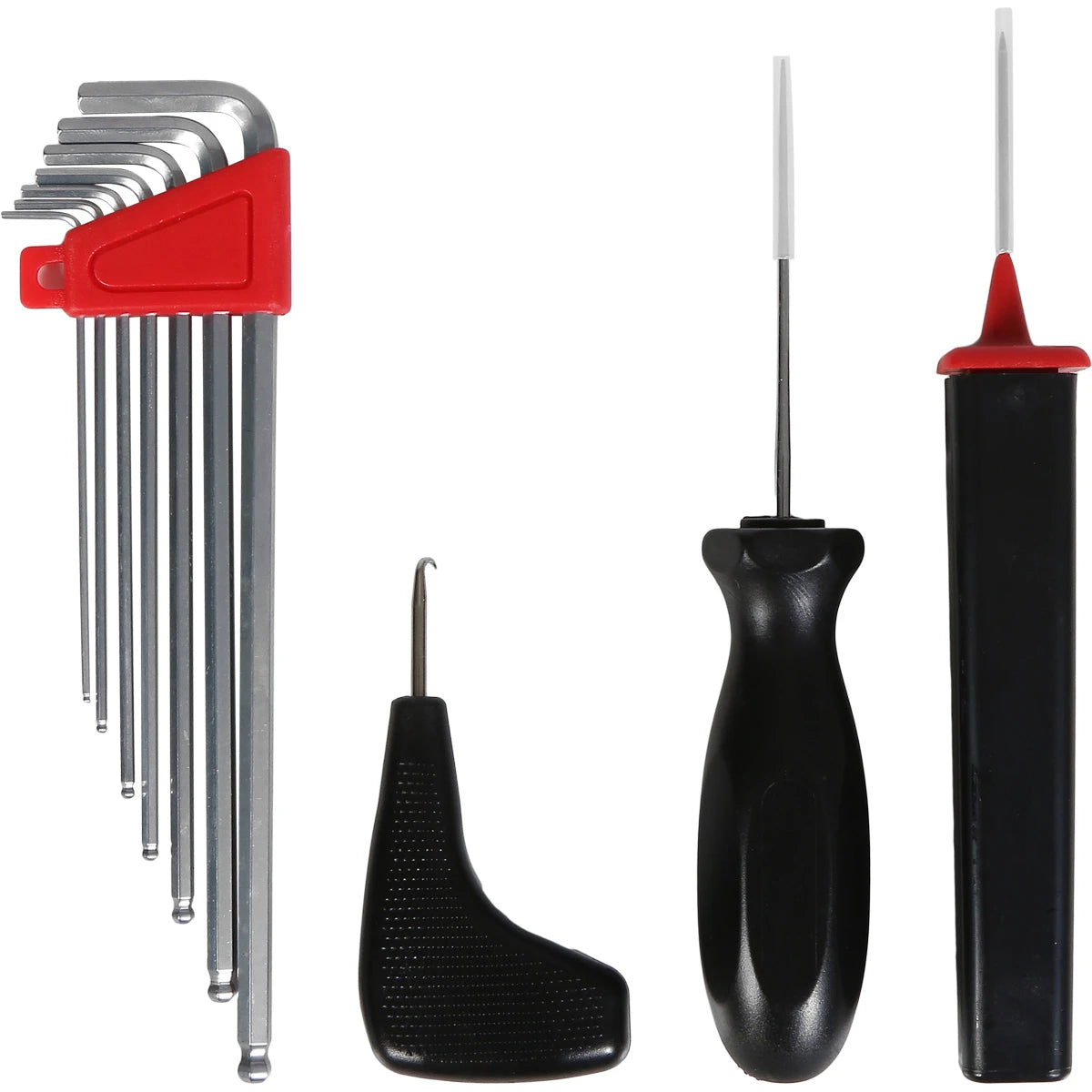

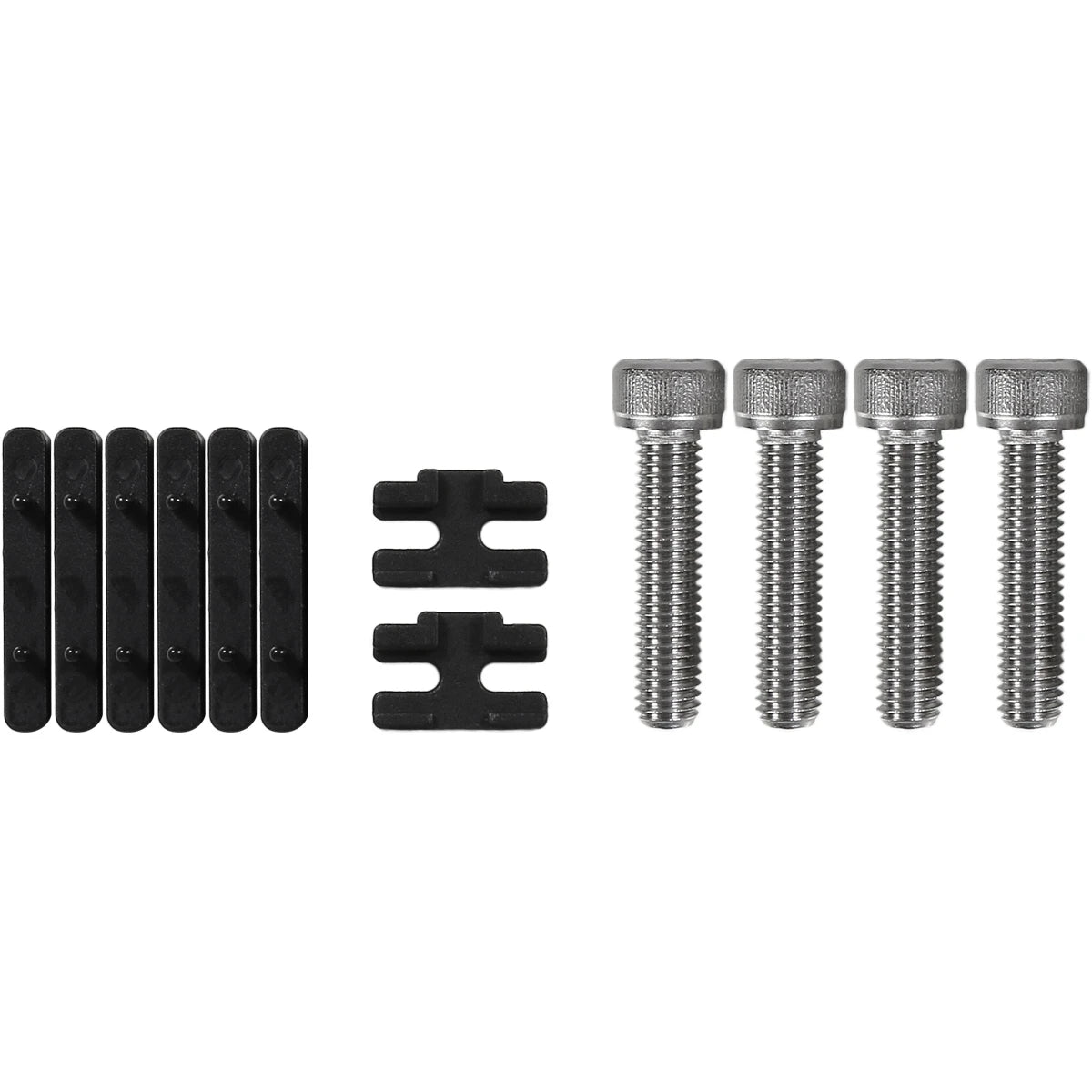

- All our machines come with a complete set of stringing tools: a starting clamp, a cutting clamp, two multi-function clamps, an awl, a string guide, a straight awl, a kit to modify the jaws for badminton mode, a badminton hook, and adjustment keys.

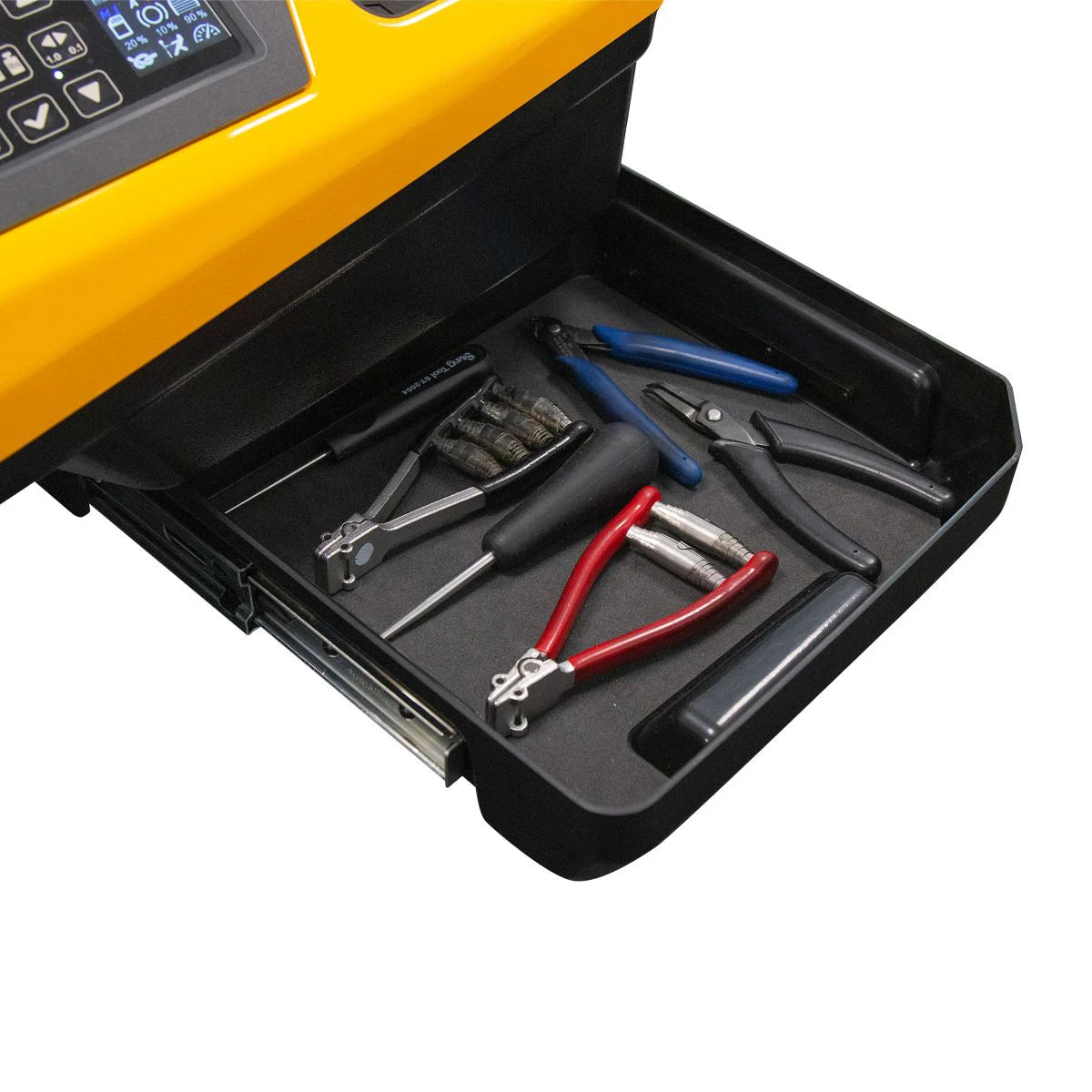

A large integrated tool compartment under the control panel allows storage of these tools, and a small space lets you keep the tools used during stringing within easy reach.

4. Tennis, Badminton and Squash: The CB-26 allows stringing tennis, badminton and squash rackets.

5. Fast stringing: The machine is suitable for all stringers, regardless of your level. It is adapted for beginner to experienced and professional stringers. The CB-26 offers the possibility to string a tennis racket in 15 minutes if the stringer’s skills allow it.

6. Warranty: The CB-26 is guaranteed for 5 years on mechanical parts and 2 years on the electronic tension system, clamps, and tooling.

7. The Tennispro Advantage: In case of problems, our in-house after-sales service, with 40 years of experience, will handle the repair or part replacement on your stringing machine directly. Trust our expertise to offer you the best service!

8. Easy to use: A detailed "stringing method" is available here. It will help and guide you during your first stringings.

Machine delivered without stand
